Connections: adapter

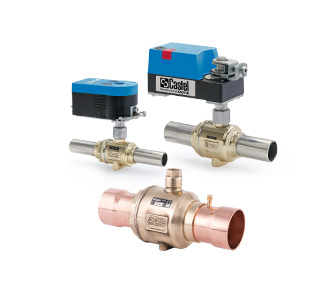

Suitable for: Castel motorized ball valves.
Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.
Motors, adapters and switches for Castel motorized ball valves.
With a switch you can determine the position of the valve and monitor it.
Please contact our experts if you have any questions.
Please see next tabs for all types and specifications.

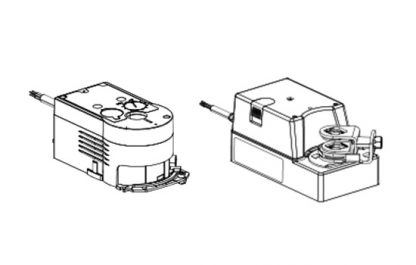

| Type | Item | Power [W] | [V] | Torque [Nm] | Loop [sec] | Class | T [°C] min/max | Art. nr. |
|---|---|---|---|---|---|---|---|---|
| 9700/RA2 | servo motor | 4,8 | 24 | 10 | 60 | IP54 | -20 / +55 | 186010 |
| 9700/RA6 | servo motor | 2,9 | 230 | 10 | 60 | IP54 | -20 / +55 | 186015 |
| 9720/RA2 | servo motor | 2,4 | 24 | 30 | 120 | IP54 | -20 / +55 | 186020 |
| 9720/RA6 | servo motor | 3,7 | 230 | 30 | 120 | IP54 | -20 / +55 | 186025 |
| 9730/RA2 | servo motor | 13,5 | 24 | 60 | 150 | IP54 | -30 / +55 | 186000 |
| 9730/RA6 | servo motor | 12 | 230 | 60 | 150 | IP54 | -30 / +55 | 186005 |

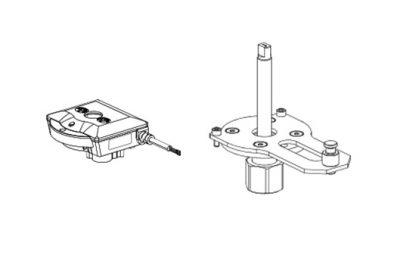

| Type | Item | Motor application | Art. nr. |
|---|---|---|---|
| 9901/X21 | adapter | 9700/RA2 | 186040 |
| 9901/X22 | adapter | 9700/RA6 | 186045 |
| 9901/X23 | adapter | 9720/RA2 en 9720/RA6 | 186050 |
| 9901/X27 | adapter | 9700/RA2 | 186055 |
| 9901/X28 | adapter | 9700/RA6 | 186060 |
| 9901/X29 | adapter | 9700/RA2 | 186070 |
| 9901/X30 | adapter | 9700/RA2 | 186065 |
| 9901/X37 | adapter | 9730/RA2 en 9730/RA6 | 186075 |
| 9901/X38 | adapter | 9720/RA2 en 9720/RA6 | 186080 |
| 9901/X39 | adapter | 9730/RA2 en 9730/RA6 | 186085 |
| 9901/X40 | adapter | 9730/RA2 en 9730/RA6 | 186090 |
| Type | Item | I max [A] | Motor application | Art. nr. |
|---|---|---|---|---|
| 9750/X01 | switch | 5 | 9700/RA2 | 186030 |
| 9750/X02 | switch | 5 | 9700/RA6, 9720/RA2 en 9720/RA6 | 186035 |
