Description

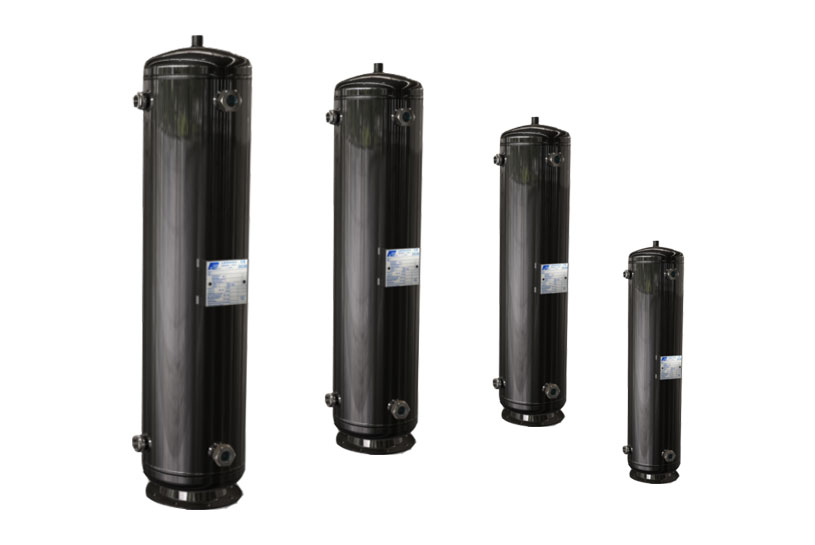

The vertical liquid receivers we have in stock from 2.4 to 500 liters (larger available). Type VT receivers are equipped with a solder connection without sight glass. They are equipped with a rotock connection on the outlet.
All other vertical liquid receivers are equipped with two or more sight glasses depending on size, inlet and outlet connections for rotalock valves, flange valves or welding connection. All vertical liquid receivers from 12 liters are equipped with a 1/2 “NPT connection for the benefit of a change-over valves and safety valves.
Please see next tab for all types and specifications
Types and connections

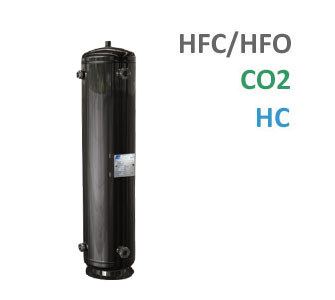

Vertical liquid receivers (24 to 930 liters) suitable for HFC / HFO.
Looking for liquid receivers for CO2 & HC refrigerants? Please contact us.
Explanation IN / OUT: UNF = rotalock connection, FLK = flange coupling, 114.3 = welding connection.
| Type | [Ltr] | D [mm] | H [mm] | In | Out | PS [bar] | Art. nr. |
| VT-2,4 | 2,4 | 120 | 290 | ODS 3/8" | UNF 1" | 33 | 215100 |
| VT-5,6 | 5,6 | 160 | 380 | ODS 1/2" | UNF 1" | 28 | 215105 |
| VT-8 | 8,0 | 180 | 430 | ODS 1/2" | UNF 1" | 28 | 215110 |
| VT-12 | 12,0 | 220 | 410 | ODS 5/8" | UNF 1" | 28 | 215115 |
| VT-20 | 20,0 | 260 | 460 | ODS 22mm | UNF 1.1/4" | 28 | 215120 |
| VT-25 | 25,0 | 280 | 555 | ODS 22mm | UNF 1.1/4" | 28 | 215125 |
| VT-35 | 35,0 | 300 | 610 | ODS 28mm | UNF 1.1/4" | 28 | 215130 |
| VTT-35 | 35 | 300 | 610 | UNF 1.1/4" | UNF 1.1/4" | 28 | 215252 |
| VTT-48 | 48 | 273 | 975 | UNF 1.1/4" | UNF 1.1/4" | 28 | 215262 |
| VTT-60 | 60 | 273 | 1210 | UNF 1.3/4" | UNF 1.1/4" | 28 | 215270 |
| VTT-80 | 80 | 273 | 1570 | UNF 1.3/4" | UNF 1.3/4" | 33 | 215275 |
| VTT-98 | 98 | 273 | 1900 | UNF 1.3/4" | UNF 1.3/4" | 28 | 215280 |
| RV 119-E | 119 | 324 | 1700 | UNF 2.1/4" | UNF 1.3/4" | 32 | 325100 |
| RV 150-E | 150 | 406 | 1400 | UNF 2.1/4" | UNF 2.1/4" | 32 | 325150 |
| RV 165-E | 165 | 324 | 2300 | UNF 2.1/4" | UNF 2.1/4" | 32 | 325160 |
| RV 180-E | 180 | 406 | 1650 | UNF 2.1/4" | UNF 2.1/4" | 32 | 325180 |
| RV 210-E | 210 | 406 | 1900 | UNF 2.1/4" | UNF 2.1/4" | 32 | 325200 |
| RV 255-E | 255 | 406 | 2230 | FLK 76,1 | UNF 2.1/4" | 32 | 325250 |
| RV 310-E | 310 | 508 | 1820 | FLK 88,9 | FLK 76,1 | 32 | 325275 |
| RV 360-E | 360 | 508 | 2100 | FLK 88,9 | FLK 76,1 | 32 | 325300 |
| RV 410-E | 410 | 508 | 2350 | FLK 88,9 | FLK 76,1 | 32 | 325320 |
| RV 500-E | 500 | 610 | 1850 | FLK 88,9 | FLK 76,1 | 32 | 325350 |
| RV 650-E | 650 | 610 | 2450 | FLK 76,1 | FLK 76,1 | 32 | 325380 |
| RV 730-E | 730 | 610 | 2800 | 114,3 | 114,3 | 32 | 325400 |
| RV 930-E | 930 | 813 | 2070 | 114,3 | 114,3 | 32 | 325450 |
