Castel sight glasses HFC/HFO

Connections: Flare – male/male  Flare – male/female  ODS,  saddle
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 en R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): -40 to +120 ºC
Temperature range (TS): -30 to +110  ºC  (type 3770)

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear
SKU: N/A Category: Tags: , , ,

Description

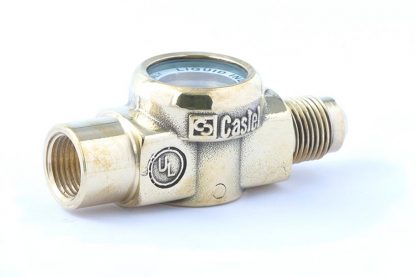

Castel sight glasses indicate by means of a visual indication whether there is moisture in the refrigerant. In the case of a yellow sight glass, moisture is present and the filter drier must be replaced. It is advisable to place a valve after the sight glass so that you can easily replace the filter drier. The presence of vapor bubbles in the sight glass indicates flash gas in the liquid line.

These HFC / HFO Castel sight glasses are suitable for all non-corrosive refrigerants.

Please see next tab for all types and specifications

Types and connections

Type Conn. [in.]Conn. [mm]Tube sizePS [bar]TS [°C] min/maxLength [mm]Art. nr.

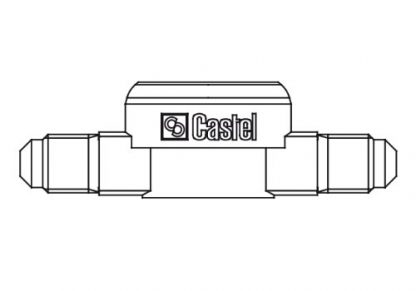

3910/22Flare male/male1/4"--45-40 / +12071.5180710
3910/33Flare male/male3/8"--45-40 / +12077.5180712
3910/44Flare male/male1/2"--45-40 / +12081.5180715
3910/55Flare male/male5/8"--45-40 / +12089.5180717
3910/66Flare male/male3/4"--45-40 / +12090..
3950/22Flare female/male1/4"--45-40 / +12068180720
3950/33Flare female/male3/8"--45-40 / +12074180722
3950/44Flare female/male1/2"--45-40 / +12077180725
3950/55Flare female/male5/8"--45-40 / +12082180727
3950/66Flare female/male3/4"--45-40 / +12092..
3940/2ODS1/4"--45-40 / +120113180745
3940/3ODS3/8"--45-40 / +120117180747
3940/M10ODS-10-45-40 / +120117180755
3940/M12ODS-12-45-40 / +120117180757
3940/4ODS1/2"--45-40 / +120117180750
3940/5ODS5/8"16-45-40 / +120131180752
3940/M18ODS-18-45-40 / +120131180762
3940/6ODS3/4"--45-40 / +120131..
3940/7ODS7/8"22-45-40 / +120151180765
3940/9ODS1.1/8"--45-40 / +120186180767

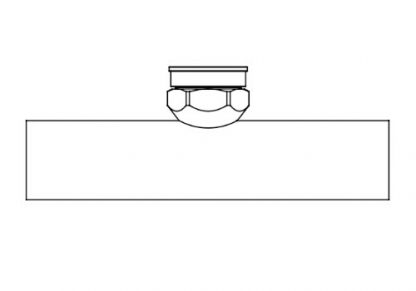

3770/M28ODS-28-45-30 / +110150..
3770/11ODS1.3/8"35-45-30 / +110160180775
3770/13ODS1.5/8"--45-30 / +110170..
3770/M42ODS-42-45-30 / +110170180777

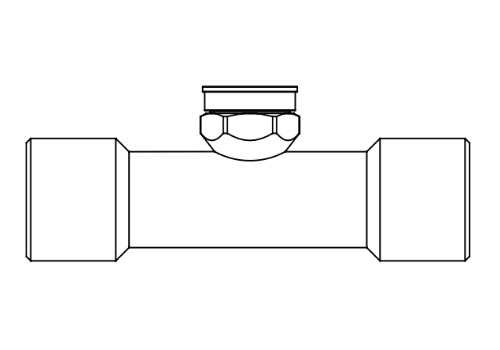

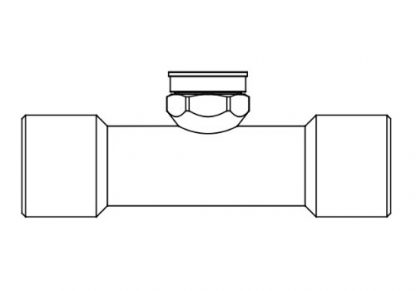

3771/11ODM (!)1.3/8"35-45-30 / +110160..
3771/M42ODM (!)-42-45-30 / +110170..
3771/17ODM (!)2.1/8"54-45-30 / +110170..

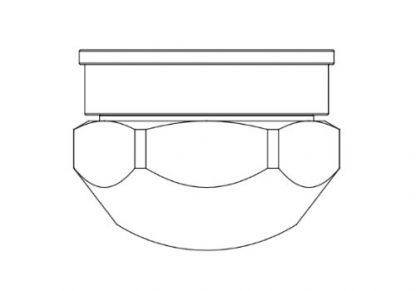

3780/5Saddle type--5/8"45-30 / +110-180700
3780/M18Saddle type--18mm45-30 / +110-180701
3780/7Saddle type--7/8"45-30 / +110-180702
3780/9Saddle type--1.1/8"45-30 / +110-180703
3780/11Saddle type--1.3/8"45-30 / +110-180704

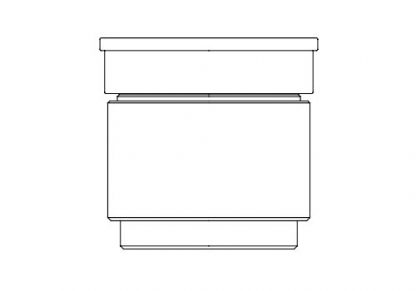

3781/M28Saddle type--28mm45-30 / +110-..

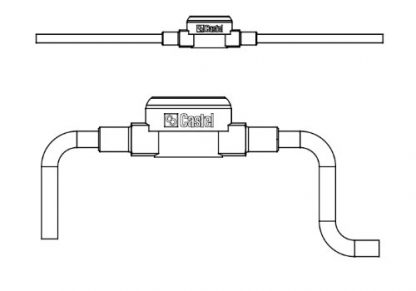

3940/X01Special-6-45-40 / +120-..
3940/X02Special-6-45-40 / +120-180746
