Castel shut off valves HFC/HFO

Connections: NPT
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 80 bar
Temperature range (TS): -40 / +150 ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear

Description

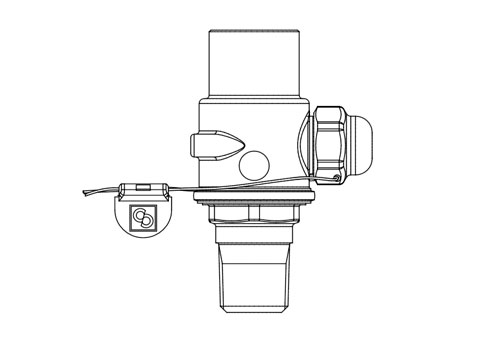

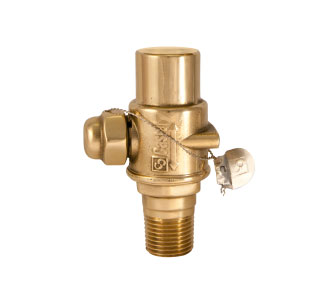

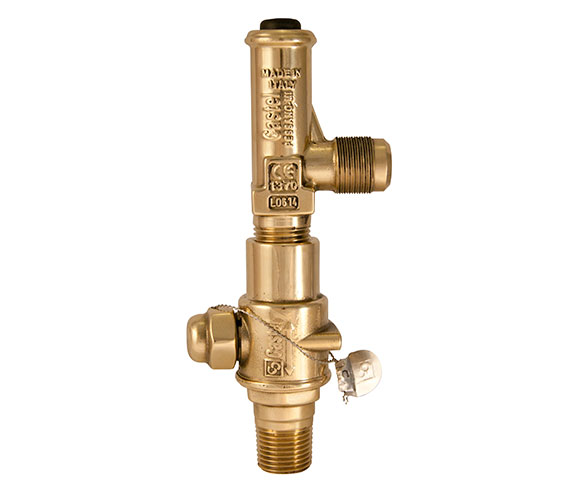

Castel shut off valves type 3064 are sealed ball valves with internal / external NPT connections. They are delivered in an open situation. The shut off valve can be closed to replace the safety valve.  If the safety valve has been replaced the shut off valve must then be sealed again in the open position.

Please see next tab for all types and specifications

Types and connections

TypeConnectionsConn. InConn. OutKv [m3/h]PS [bar]TS [°C] min/maxArt. code.
3064/22NPT male x NPT female1/4"1/4"2,580-40 / +150..
3064/33NPT male x NPT female3/8"3/8"580-40 / +150..
3064/44NPT male x NPT female1/2"1/2"1080-40 / +150180787
3064/88NPT male x NPT female1"1"2080-40 / +150..
