Connections: UNF, ODS
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): -10 to +140 ºC *
Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

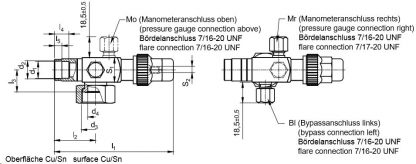

The AWA rotalock valves can be used for example on our liquid receivers and oil reservoirs. They are equipped with two 1/4 “flare service connections. One port is lockable and the other one is non-lockable. Pressure switches must always be connected to a non-lockable port. The Rotalock valves are available with solder connections from 3/8 “to 54 mm.
Please see next tabs for all types and specifications.
| Type | Description | UNF [in.] | ODS [in.] | ODS [mm] | PS [bar] | TS [°C] min/max | Art. nr. |
|---|---|---|---|---|---|---|---|
| 430101 | Receiver valve UNF x ODS | 1" | 3/8" | - | 45 | -10 / +140 | 430101 |
| 430105 | Receiver valve UNF x ODS | 1" | 1/2" | - | 45 | -10 / +140 | 430105 |
| 430111 | Receiver valve UNF x ODS | 1" | 5/8" | - | 45 | -10 / +140 | 430111 |
| 430114 | Receiver valve UNF x ODS | 1.1/4" | 5/8" | - | 45 | -10 / +140 | 430114 |
| 430115 | Receiver valve UNF x ODS | 1.1/4" | - | 22 | 45 | -10 / +140 | 430115 |
| 430120 | Receiver valve UNF x ODS | 1.1/4" | - | 28 | 45 | -10 / +140 | 430120 |
| 430122 (Kv=8,5) | Receiver valve UNF x ODS | 1.3/4" | - | 28 | 45 | -10 / +140 | 430122 |
| 430124 (Kv=17,0) | Receiver valve UNF x ODS | 1.3/4" | - | 28 | 45 | -10 / +140 | 430124 |
| 430125 | Receiver valve UNF x ODS | 1.3/4" | - | 35 | 45 | -10 / +140 | 430125 |
| 430131 | Receiver valve UNF x ODS | 1.3/4" | - | 42 | 45 | -10 / +140 | 430131 |
| 430132 | Receiver valve UNF x ODS | 2.1/4" | - | 42 | 45 | -10 / +140 | 430132 |
| 430135 | Receiver valve UNF x ODS | 2.1/4" | - | 54 | 45 | -10 / +140 | 430135 |
