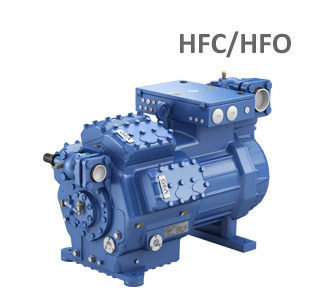

GEA Bock semi-hermetic compressors HFC/HFO

  • Outstanding running comfort
  • Efficiency and reliability on the highest level of quality
  • Service-friendly, e.g. replaceable drive motors
  • Oil pump lubrication
  • Electronic motor protection
  • Suitable for conventional or chlorine-free HFC refrigerants!



Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear

Description

The HG model series consists of state-of-the-art classical suction gas-cooled compressor technology. Assurance of effective lubrication by an oil pump, application of exchangeable electrical motors, as well as manufacture of very solid and rugged compressors is ensured.

More information about the HG single-stage compressors (e.g. technical/performance data, drawings, spare part lists, operating limits) can be found in the compressor selection tool VAP via the following link: www.eurocold-vap.nl

Please see next tabs for all types and specifications

Types HGX ../.. 4S

TypeDispl. [m3/hr]E-motorImax [A]SVDVOil [ltr][kg]Art. nr.
HGX12P/60-4S5,4A6,8 / 3,916mm12mm0,84845006
HGX12P/75-4S6,7A8,0 / 4,616mm12mm0,84945007
HGX12P/90-4S8,0A9,1 / 5,316mm12mm0,84945008
HGX12P/110-4S9,4A10,6 / 6,122mm12mm0,84945009
HGX22e/125-4S11,1A10,8 / 6,222mm16mm1,07445010
HGX22e/160-4S13,7A13,1 / 7,622mm16mm1,07645011
HGX22e/190-4S16,5A16,2 / 9,422mm16mm1,07545012

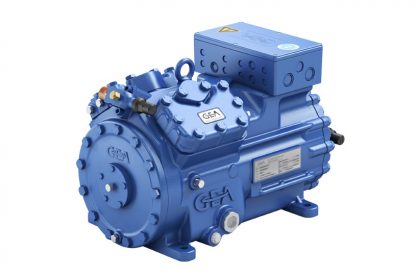

HGX34e/215-4S18,8A18,3 / 10,528mm16mm1,39745013
HGX34e/255-4S22,1A21,1 / 12,228mm22mm1,39645014
HGX34e/315-4S27,3A25,5 / 14,735mm22mm1,39745015
HGX34e/380-4S33,1A31,2 / 18,035mm22mm1,39645016

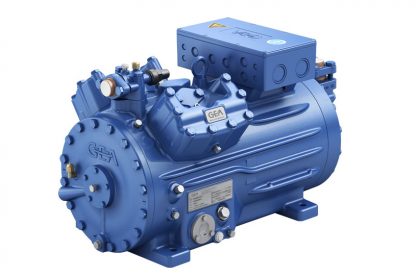

HGX44e/475-4S41,3B23,035mm28mm2,316845241
HGX44e/565-4S49,2B26,042mm28mm2,317045245
HGX44e/665-4S57,7B30,042mm28mm2,316845249
HGX44e/770-4S67,0B35,042mm28mm2,316445251

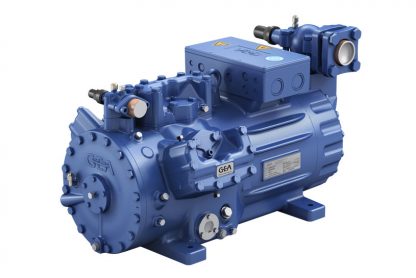

HGX56e/850-4S73,8B43,054mm35mm3,021145293
HGX56e/995-4S86,6B50,054mm35mm3,021145295
HGX56e/1155-4S100,4B61,054mm35mm3,022145297
HGX66e/1340-4S116,5B65,342mm54mm4,428845528
HGX66e/1540-4S133,8B75,042mm54mm4,428645530
HGX66e/1750-4S152,2B86,842mm54mm4,428245532
HGX66e/2070-4S180,0B103,042mm64mm4,427945534
HGX88e/2400-4S209,1B120,080mm54mm9,645245652
HGX88e/2735-4S238,0B141,080mm54mm9,046845664
HGX88e/3235-4S281,3B160,080mm54mm9,046245684
HGX4/465-4S40,5B25,035mm28mm2,715145240
HGX4/555-4S48,2B30,035mm28mm2,715345244
HGX4/650-4S56,6B37,042mm28mm2,715545248
HGX5/725-4S62,9B37,042mm28mm3,620145292
HGX5/830-4S72,2B42,042mm28mm3,620345296
HGX5/945-4S82,2B49,054mm35mm3,620545300
HGX6/1080-4S93,7B59,054mm35mm3,622345495
HGX6/1240-4S107,6B75,054mm35mm3,622445505
HGX6/1410-4S122,4B76,054mm35mm3,622245515
HGX7/1620-4S140,7B83,054mm42mm4,529945595
HGX7/1860-4S161,4B104,02.5/8"42mm4,529245615
HGX7/2110-4S183,6B119,02.5/8"42mm4,529745635
HGX8/2470-4S215,0B133,280mm54mm9,043245645

Types HGX ../.. 4

TypeDispl. [m3/hr]E-motorImax [A]SVDVOil [ltr][kg]Art. nr.
HGX12P/60-45,4A6,8 / 3,916mm12mm0,84845006
HGX12P/75-46,7A7,1 / 4,116mm12mm0,84845000
HGX12P/90-48,0A8,5 / 4,916mm12mm0,84945001
HGX12P/110-49,4A9,2 / 5,322mm12mm0,84945002
HGX22e/125-411,1A9,3 / 5,422mm16mm1,07445003
HGX22e/160-413,7A11,1 / 6,422mm16mm1,07445004
HGX22e/190-416,5A13,8 / 8,022mm16mm1,07445005
HGX34e/215-418,8A14,0 / 8,128mm22mm1,39245017
HGX34e/255-422,1A17,0 / 9,828mm22mm1,39245018
HGX34e/315-427,3A21,1 / 12,235mm22mm1,39445019
HGX34e/380-433,1A26,1 / 15,135mm22mm1,39345020
HGX44e/475-441,3B19,035mm28mm2,316445213
HGX44e/565-449,2B22,035mm28mm2,316445218
HGX44e/665-457,7B26,042mm28mm2,316945223
HGX44e/770-467,0B35,042mm28mm2,316445251
HGX56e/850-473,8B38,054mm35mm3,019445273
HGX56e/995-486,6B44,054mm35mm3,020845274
HGX56e/1155-4100,4B51,054mm35mm3,021245275
HGX66e/1340-4116,5B53,742mm54mm4,428345520
HGX66e/1540-4133,8B62,142mm54mm4,428145522
HGX66e/1750-4152,2B71,942mm54mm4,428045524
HGX66e/2070-4180,0B85,142mm64mm4,427745526
HGX88e/2400-4209,1B101,080mm54mm9,645245650
HGX88e/2735-4238,0B118,080mm54mm9,046745654
HGX88e/3235-4281,3B135,080mm54mm9,044245674
HGX4/465-440,5B20,035mm28mm2,714845212
HGX4/555-448,2B24,035mm28mm2,715045217
HGX4/650-456,6B29,042mm28mm2,715245222
HGX5/725-462,9B30,042mm28mm3,619845272
HGX5/830-472,2B35,042mm28mm3,619745277
HGX5/945-482,2B42,054mm35mm3,620145282
HGX6/1080-493,7B48,054mm35mm3,621845455
HGX6/1240-4107,6B57,054mm35mm3,622245465
HGX6/1410-4122,4B65,054mm35mm3,621945475
HGX7/1620-4140,7B72,054mm42mm4,527845585
HGX7/1860-4161,4B80,054mm42mm4,529645605
HGX7/2110-4183,6B97,02.5/8"42mm4,528945625
HGX8/2470-4215,0B133,280mm54mm9,043245640
