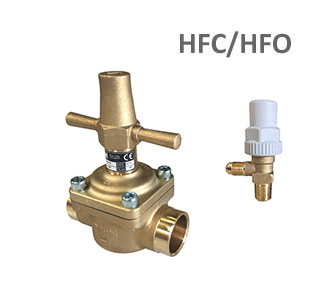

Castel service valves HFC/HFO

Connections: ODS, flare male/male, NPT
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): –40/-35 to +110/160 ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear

Description

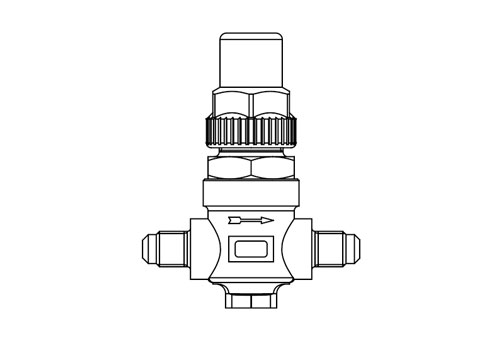

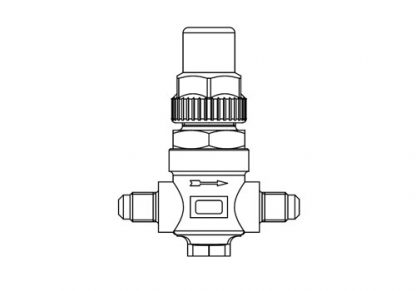

Castel has, apart from the separately specified ball valves, check valves and solenoid valves an extensive range of various other (service) valves. There are service valves with flare, NPT, and ODS connections up to 22mm, for example, to be used as a tank valve, fill valve, manometer valve, valve in oil return pipes etc. This concerns types 6012 / .., 6110 / .., 6410 / .., 6420 / …

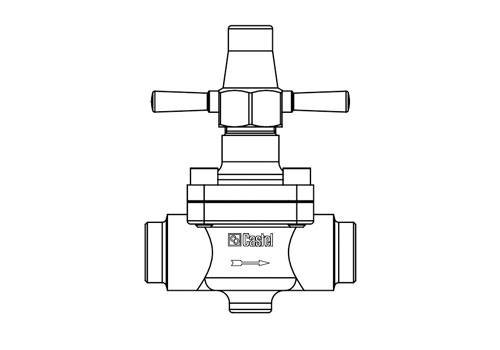

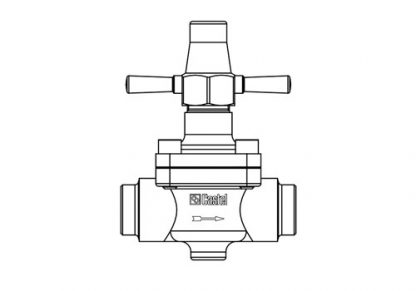

In addition, there are the larger valves, type 6512 / .., with ODS connections from 22 to 54 mm. With these valves the spindle cap is also an operating key to open or close the valve.

Please see next tabs for all types and specifications.

Other valves:
Ball valves
Solenoid valves
Check valves



Straight valves

TypeDescriptionConn. [in.]Conn. [mm]Kv [m3/h]PS [bar]TS [°C] min/maxArt. nr.
6410/2Flare out/out1/4"-0,445-40 / +110180007
6410/3Flare out/out3/8"-145-40 / +110180010
6410/4Flare out/out1/2"-1,4545-40 / +110180012
6410/5Flare out/out5/8"-1,745-40 / +110180015
6420/2ODS brass1/4"-0,445-40 / +110180022
6420/3ODS brass3/8"-145-40 / +110180025
6420/M10ODS brass-10145-40 / +110180040
6420/M12ODS brass-121,4545-40 / +110180042
6420/4ODS brass1/2"-1,4545-40 / +110180027
6420/5ODS brass5/8"161,745-40 / +110180030
6420/M18ODS brass-183,545-40 / +110180047
6420/M22ODS brass-223,545-40 / +110180050
6420/7ODS brass7/8"-3,545-40 / +110180035
6512/M22ODS brass-227,145-35 / +160180280
6512/7ODS brass7/8"-7,145-35 / +160180250
6512/M28ODS brass-288,445-35 / +160180282
6512/9ODS brass1.1/8"-8,445-35 / +160180252
6512/11ODS brass1.3/8"351545-35 / +160180255
6512/13ODS brass1.5/8"-2545-35 / +160180257
6512/M42ODS brass-422545-35 / +160180285
6512/17ODS brass2.1/8"544045-35 / +160180260

Angle valves

TypeSoortConn. [in.]Conn. [in.]Conn. [mm]Kv [m3/h]PS [bar]TS [°C] min/maxArt. nr.
6110/22Flare x NPT1/4"1/4"-0,4445-40 / +130180125
6110/32Flare x NPT3/8"1/4"-1,3545-40 / +130180127
6110/33Flare x NPT3/8"3/8"-1,3545-40 / +130180130
6110/44Flare x NPT1/2"1/2"-3,445-40 / +130180132
6110/54Flare x NPT5/8"1/2"-3,445-40 / +130180135
6110/23Flare x NPT1/4"3/8"-0,4545-40 / +130180126
6532/M22 *ODS brass--228,245-35 / +160180320
6532/7 *ODS brass-7/8"-8,245-35 / +160180300
6532/M28 *ODS brass--289,145-35 / +160180322
6532/9 *ODS brass-1.1/8"-9,145-35 / +160180302
6532/11 *ODS brass-1.3/8"3518,745-35 / +160180305
6532/13 *ODS brass-1.5/8"-3845-35 / +160180307
6532/M42 *ODS brass--423845-35 / +160180325
6532/17 *ODS brass-2.1/8"5448,545-35 / +160180310

*expiring product, contact us for availability.

Special valves

TypeDescriptionConn. OutConn. InPS [bar]TS [°C] min/maxArt. nr.
6012/22with foot1/4" SAE1/4" ODS45-40 / +130180020
6110/3Csafety receiver valve3/8" SAE3/8" NPT45-40 / +130180160
6110/3S2ODS - NPT3/8" ODS3/8" NPT45-40 / +130180095
6140/22y-shaped valve1/4" SAE1/4" NPT45-40 / +130180220
6420/3S3capped valve3/8" SAE3/8" ODS45-40 / +110180060
8321/22gauge valve1/4" SAE1/4" NPT45-40 / +130180066
