Castel rupture discs HFC/HFO

Connections: NPT
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 55 bar
Temperature range (TS): -40 to +150 ºC *

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.

We will contact you after receiving your RFQ to discuss the desired pressure.

SKU: N/A Category: Tags: , , ,

Description

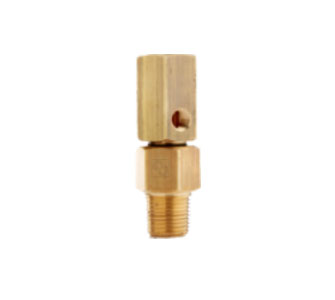

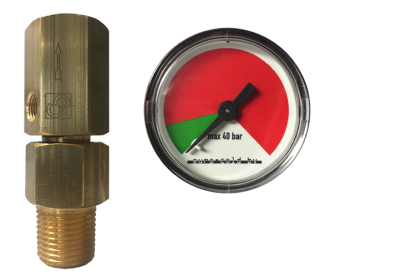

The Castel rupture discs, type 3070/44 are equipped with 1/2 “NPT in / external connections and 2x 1/8” NPT service connections to check whether the rupture disc is broken. A manometer for permanent monitoring is available for this purpose (our article number 595300). A schräder valve can be mounted on the 2nd connection (our article number 200676).

Please see next tab for all types and specifications

Types and connections

TypeDescription Conn. InConn. OutRange [bar]PS [bar]TS [°C] min/maxArt. nr.
3070/44In NPT male x Out NPT fem.1/2"1/2"8-5055-40 / +150..
595300PED gauge, 1/8" NPT595300
